尺寸
最大高度2923mm
最低位置-630mm
最大臂展2000 mm
底座长宽950*919mm
底座高度610mm
有效运动范围15.75m³
'/%3e%3cpath%20d='M641,113.58a51.75,51.75,0,0,1-2.15,15.52A43.55,43.55,0,0,1,633,141.16a40.94,40.94,0,0,1-8.45,8.94,50.92,50.92,0,0,1-10,6.1A48.08,48.08,0,0,1,604,159.67a50.38,50.38,0,0,1-10,1.07l53,45.8H607.78l-52.93-45.8H536.59V135.35H594a29.45,29.45,0,0,0,8.74-2,21.5,21.5,0,0,0,6.84-4.35,18.44,18.44,0,0,0,4.44-6.59,23.38,23.38,0,0,0,1.57-8.83v-16a7.8,7.8,0,0,0-.54-3.27,3.83,3.83,0,0,0-3.13-2.3c-.62-.06-1.18-.09-1.71-.09H526.44V206.54H501V79.3a13,13,0,0,1,3.67-9.08,12,12,0,0,1,4.05-2.74,13.07,13.07,0,0,1,5.08-1h96.38a30.61,30.61,0,0,1,14.36,3.08,29.06,29.06,0,0,1,9.52,7.72,30.09,30.09,0,0,1,5.28,10,35.21,35.21,0,0,1,1.61,10Z'%20transform='translate(0.11%200)'/%3e%3cpath%20d='M803.88,206.54H778.49V172.17H689.23v34.37H663.84v-70a74,74,0,0,1,5.27-28.22,66,66,0,0,1,14.65-22.17,66.74,66.74,0,0,1,22.17-14.45,73.81,73.81,0,0,1,27.93-5.18h57.22a12.82,12.82,0,0,1,5,1,12.56,12.56,0,0,1,6.84,6.84,12.82,12.82,0,0,1,1,5ZM689.23,146.78h89.26V91.9H733.86c-.78,0-2.43.11-4.93.34a50.51,50.51,0,0,0-8.7,1.71,54.47,54.47,0,0,0-10.4,4.2A36.28,36.28,0,0,0,699.78,106a39.71,39.71,0,0,0-7.57,12.45q-3,7.47-3,18.11Z'%20transform='translate(0.11%200)'/%3e%3c/svg%3e)
U-MOCO GRA 影视摄影机械臂
创意多面手，专业表现始终如一
01影视级表现，轻松应对各类拍摄
02地轨系统支持，运镜自由度极高
03全能配置，满足虚拟与实拍需求
04额定负载 20 kg，满足多种摄影设备配置
技术规格
核心尺寸、运动性能与使用环境
轴限位
A1±185°
A2-185°～+65°
A3-138°～+175°
A4±350°
A5±130°
A6±350°
性能
最大旋转线速度6 m/s
稳定速度2 m/s
最大直线速度4 m/s
额定负载20 kg
整机重量（依配置）≈664 kg
重复定位精度±0.04 mm
电力与环境
输入电源380 V
输入电流15 A
臂体防水等级IP65
运行温度0–55 °C

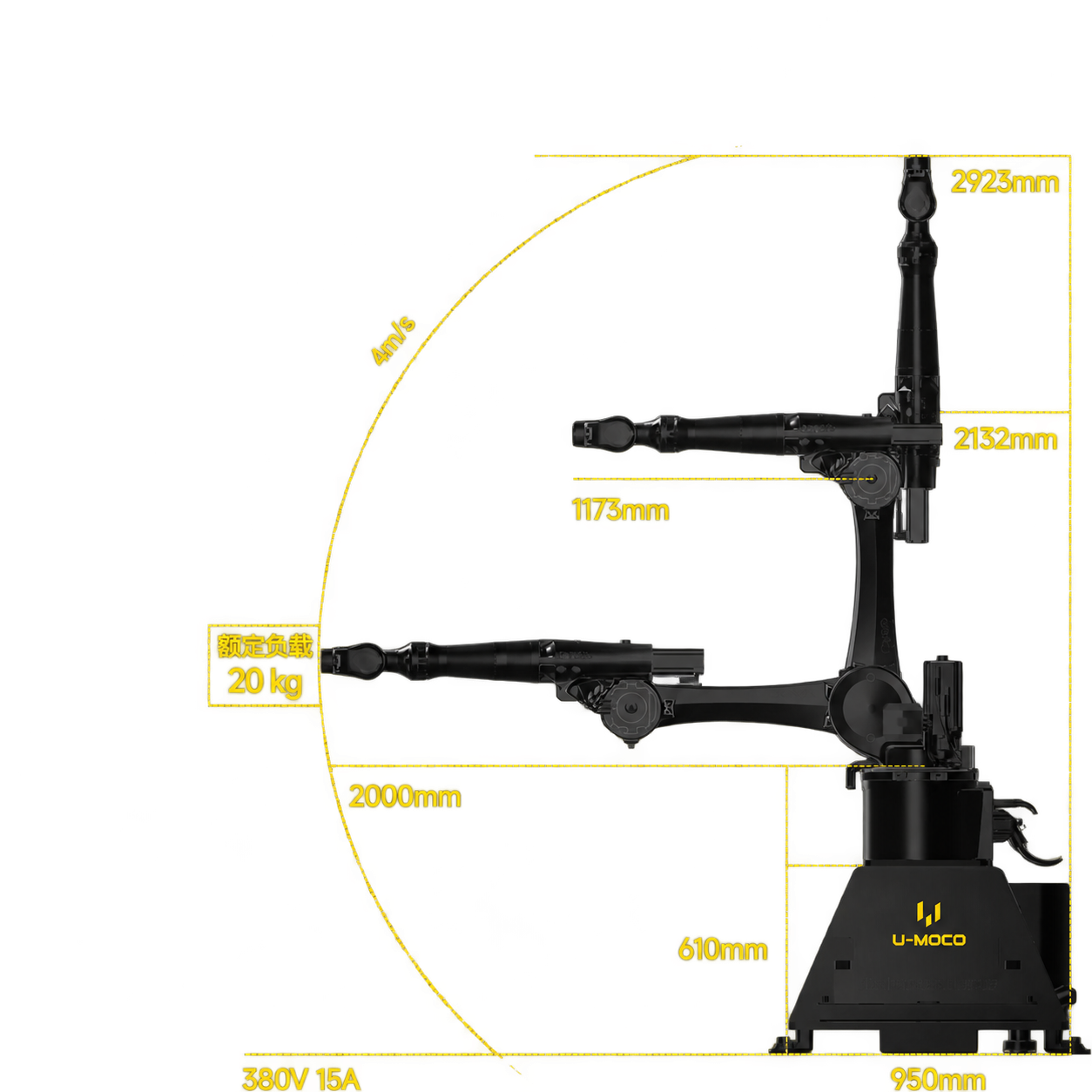

标尺示意图
