尺寸
最大高度3695mm
最低位置-1200mm
最大臂展2685 mm
底座长宽950*919mm
底座高度610mm
有效运动范围42.76m³
'/%3e%3cpath%20d='M638.82,114a51.82,51.82,0,0,1-2.15,15.53,43.83,43.83,0,0,1-5.81,12.06,40.89,40.89,0,0,1-8.45,8.93,51,51,0,0,1-10,6.11A48,48,0,0,1,601.85,160a50.43,50.43,0,0,1-10,1.08l53,45.8H605.61l-52.93-45.8H534.42V135.73h57.42a29.45,29.45,0,0,0,8.74-2,21.85,21.85,0,0,0,6.84-4.35,18.53,18.53,0,0,0,4.44-6.59,23.43,23.43,0,0,0,1.56-8.84v-16a7.84,7.84,0,0,0-.53-3.28A4,4,0,0,0,611.52,93a4.11,4.11,0,0,0-1.76-.63c-.62-.06-1.19-.1-1.71-.1H524.26V206.92H498.87V79.67a13,13,0,0,1,3.67-9.08,12,12,0,0,1,4-2.73,13.07,13.07,0,0,1,5.08-1h96.38A30.61,30.61,0,0,1,622.41,70a29.16,29.16,0,0,1,9.52,7.71,30,30,0,0,1,5.27,10,35,35,0,0,1,1.62,10.06Z'%20transform='translate(0.11%200)'/%3e%3cpath%20d='M811.28,150.28a61.54,61.54,0,0,1-4.4,23.53,54.81,54.81,0,0,1-30.71,30.72,61.41,61.41,0,0,1-23.29,4.34H718.5a61.78,61.78,0,0,1-23.34-4.34,55.2,55.2,0,0,1-18.55-12.16,56.31,56.31,0,0,1-12.26-18.56,61,61,0,0,1-4.44-23.53V123.52A61.09,61.09,0,0,1,664.35,100a55.69,55.69,0,0,1,12.26-18.56,56.27,56.27,0,0,1,18.55-12.16,61,61,0,0,1,23.34-4.39h34.38a60.67,60.67,0,0,1,23.29,4.39,56.26,56.26,0,0,1,18.5,12.16A55.12,55.12,0,0,1,806.88,100a61.64,61.64,0,0,1,4.4,23.48Zm-25.39-26.76a37,37,0,0,0-2.4-13.62,29.49,29.49,0,0,0-17.18-17.19,36.62,36.62,0,0,0-13.43-2.39H718.5A36.84,36.84,0,0,0,705,92.71a30.66,30.66,0,0,0-10.5,6.74,29.86,29.86,0,0,0-6.79,10.45,37.15,37.15,0,0,0-2.39,13.62v26.76a37.15,37.15,0,0,0,2.39,13.62,29.77,29.77,0,0,0,6.79,10.45,30.52,30.52,0,0,0,10.5,6.74,36.63,36.63,0,0,0,13.52,2.39h34.18a36.69,36.69,0,0,0,13.53-2.39,30.52,30.52,0,0,0,10.5-6.74,29.61,29.61,0,0,0,6.78-10.45,37,37,0,0,0,2.4-13.62Z'%20transform='translate(0.11%200)'/%3e%3c/svg%3e)
U-MOCO PRO 影视摄影机械臂
特种拍摄利器，极速稳控全场
01超长臂展2.7米，广角全景一手掌控
02额定负载 50 kg，支持专业摄影设备配置
03震幅超低，微距细节尽显无遗
04极速运镜，无惧挑战
技术规格
核心尺寸、运动性能与使用环境

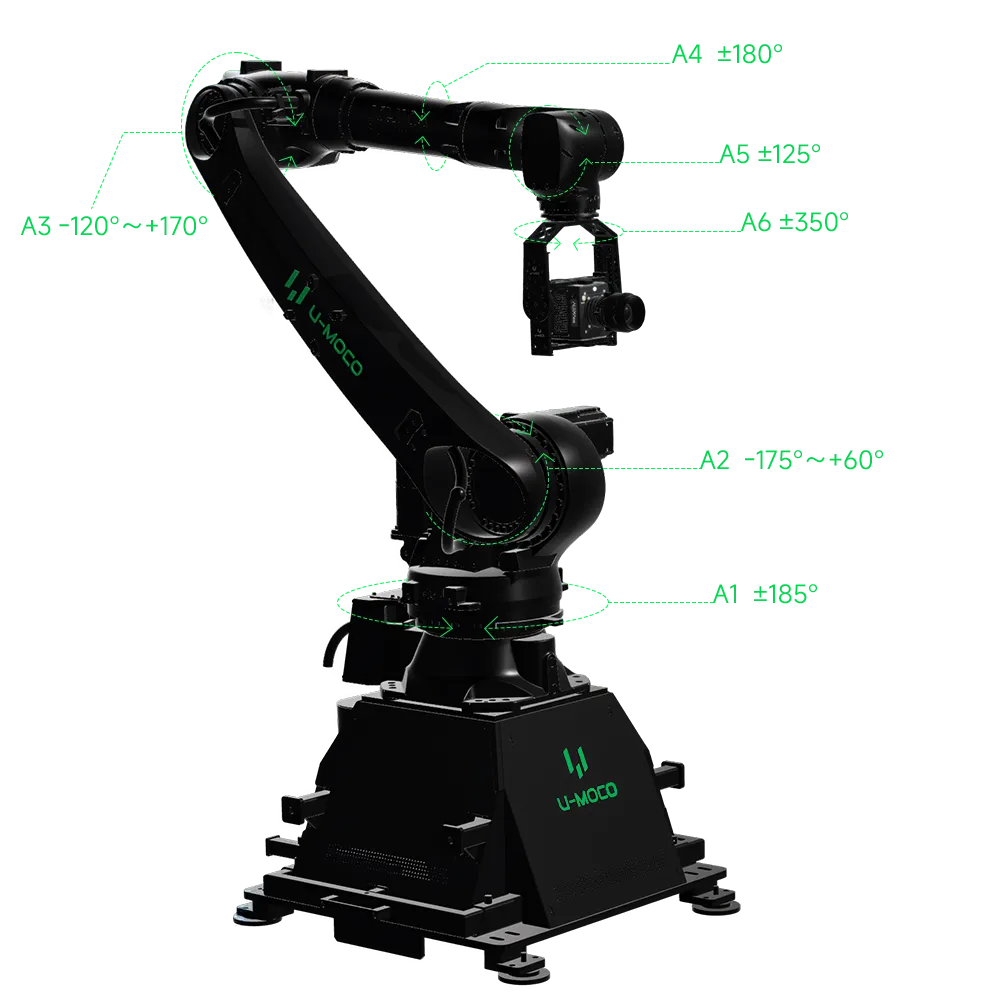

轴限位
A1±185°
A2-175°～+60°
A3-120°～+170°
A4±180°
A5±125°
A6±350°
性能
最大旋转线速度7.4 m/s
稳定速度2 m/s
最大直线速度4 m/s
额定负载50 kg
整机重量（依配置）≈968 kg
重复定位精度±0.05 mm
电力与环境
输入电源380 V
输入电流20 A
臂体防水等级IP65
运行温度0–55 °C

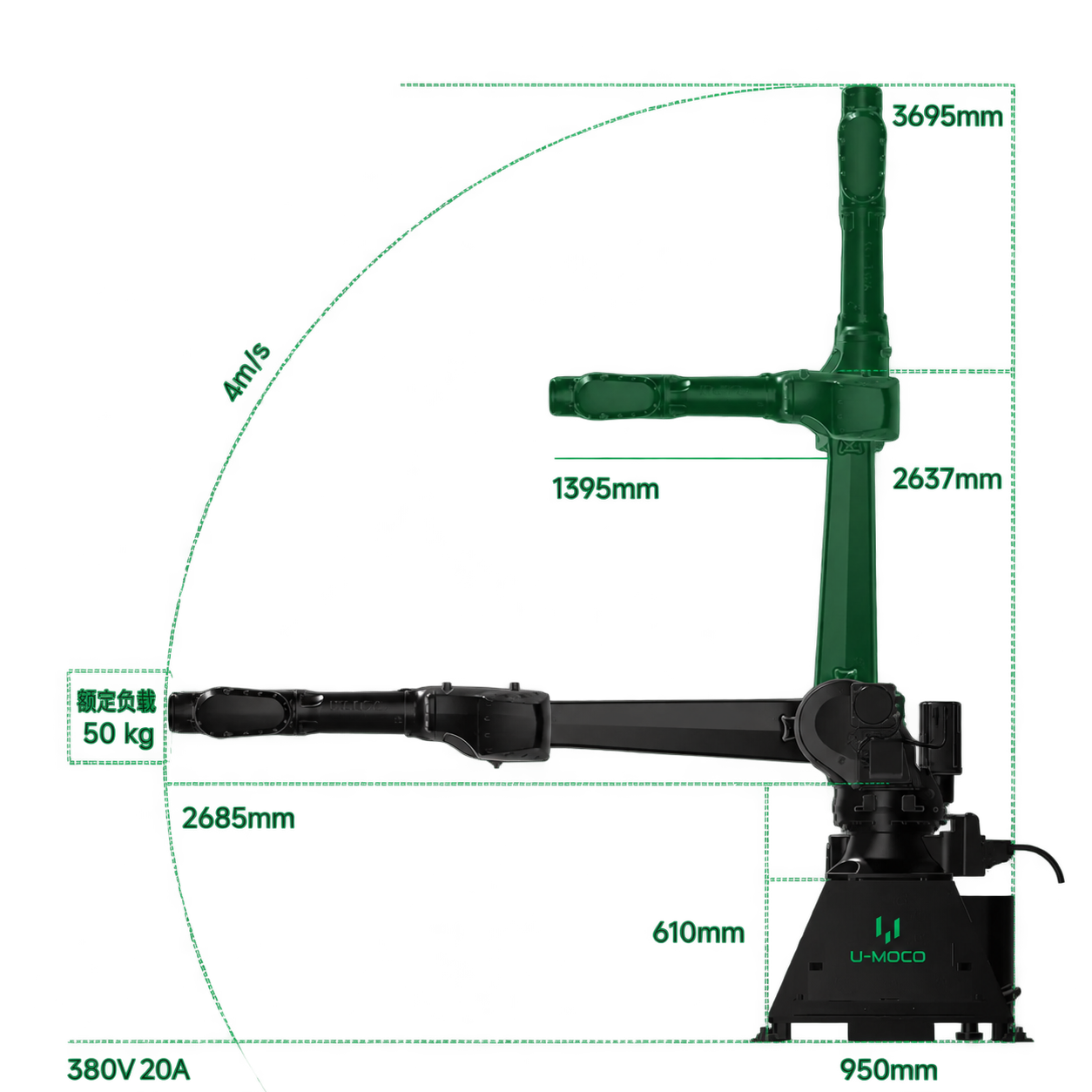

标尺示意图
