尺寸
最大高度2135mm
最低位置-385mm
最大臂展1307 mm
底座长宽750*550mm
底座高度630mm
底座支撑四点高强度可调脚撑
移动与轨道适配四个万向脚轮，支持地面自由推行；适配 620 mm 标准轨距需增配轨道转接件
有效运动范围4.39m³
'/%3e%3cpath%20d='M530.16,212.11H504.77v-140h25.39Z'%20transform='translate(0.11%200)'/%3e%3cpath%20d='M699.79,119.14a51.82,51.82,0,0,1-2.15,15.53,43.55,43.55,0,0,1-5.81,12.06,41.17,41.17,0,0,1-8.45,8.94,51.11,51.11,0,0,1-10,6.1,48.71,48.71,0,0,1-10.54,3.47,51.22,51.22,0,0,1-10,1.07l53,45.8H666.59l-52.93-45.8H595.39V140.92h57.43a29.52,29.52,0,0,0,8.74-2,21.74,21.74,0,0,0,6.83-4.35,18.69,18.69,0,0,0,4.45-6.59,23.43,23.43,0,0,0,1.56-8.84v-16a7.77,7.77,0,0,0-.54-3.27,3.93,3.93,0,0,0-1.37-1.67,4.12,4.12,0,0,0-1.75-.63c-.62-.06-1.19-.1-1.71-.1H585.24V212.11H559.85V84.86a12.93,12.93,0,0,1,3.66-9.08,12.06,12.06,0,0,1,4-2.73,13.1,13.1,0,0,1,5.08-1H669a30.57,30.57,0,0,1,14.35,3.08,29.16,29.16,0,0,1,9.52,7.71,30,30,0,0,1,5.28,10,35.28,35.28,0,0,1,1.61,10.06Z'%20transform='translate(0.11%200)'/%3e%3c/svg%3e)
U-MOCO AIR 影视摄影机械臂
轻盈如风，创意飞扬
220 V 轻松供电
室内室外，无需担心电力问题
影宸 TR-3570W 持续满载运行 续航长达20小时
臂体重量 36 kg
轻量化可拆分设计
力控拖拽
手动录入轨迹，一键回放
重复运镜
各类特效无缝衔接

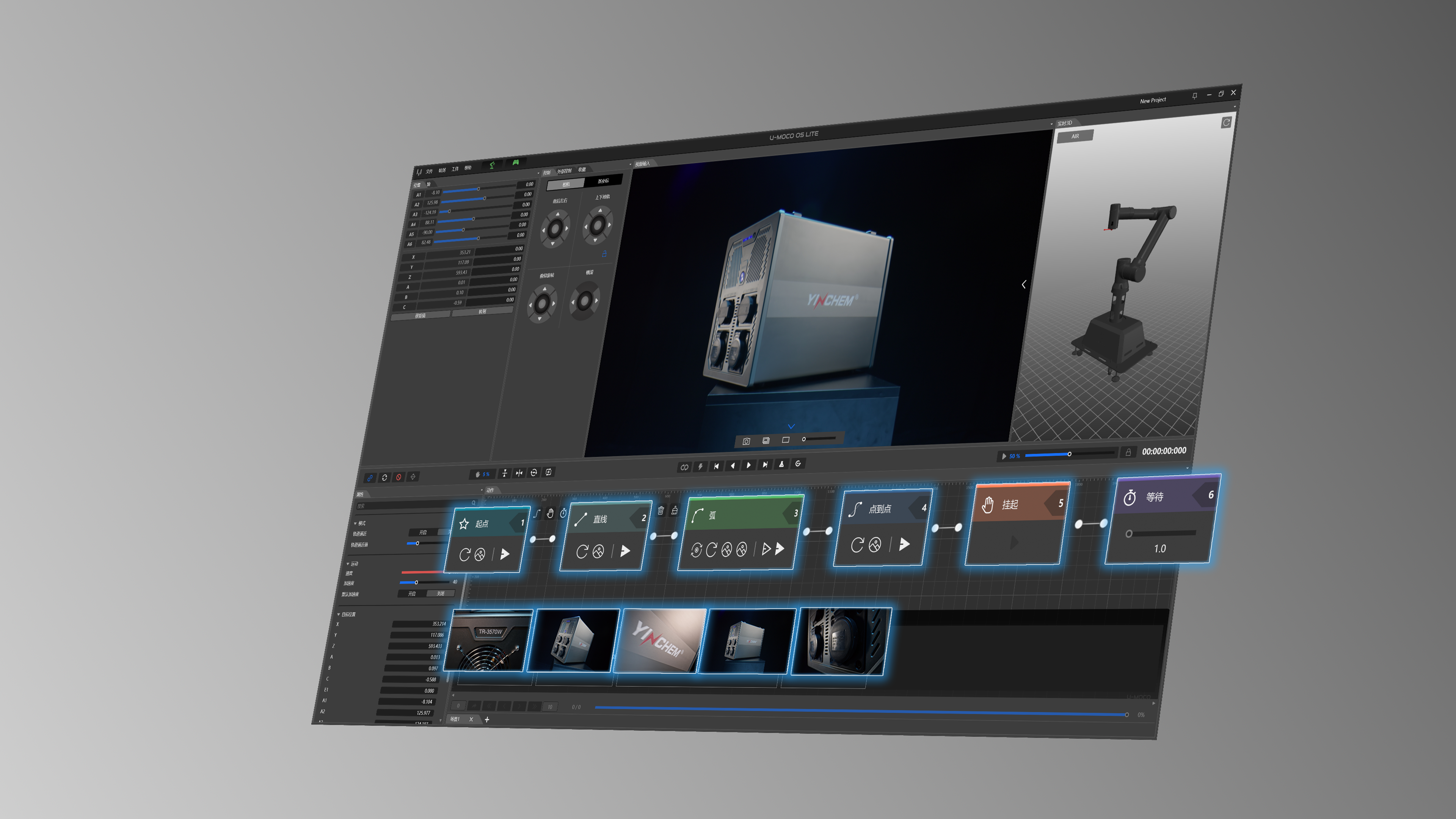

可视化操作软件
新手快速上手
无需代码，直觉创作
技术规格
核心尺寸、运动性能与使用环境

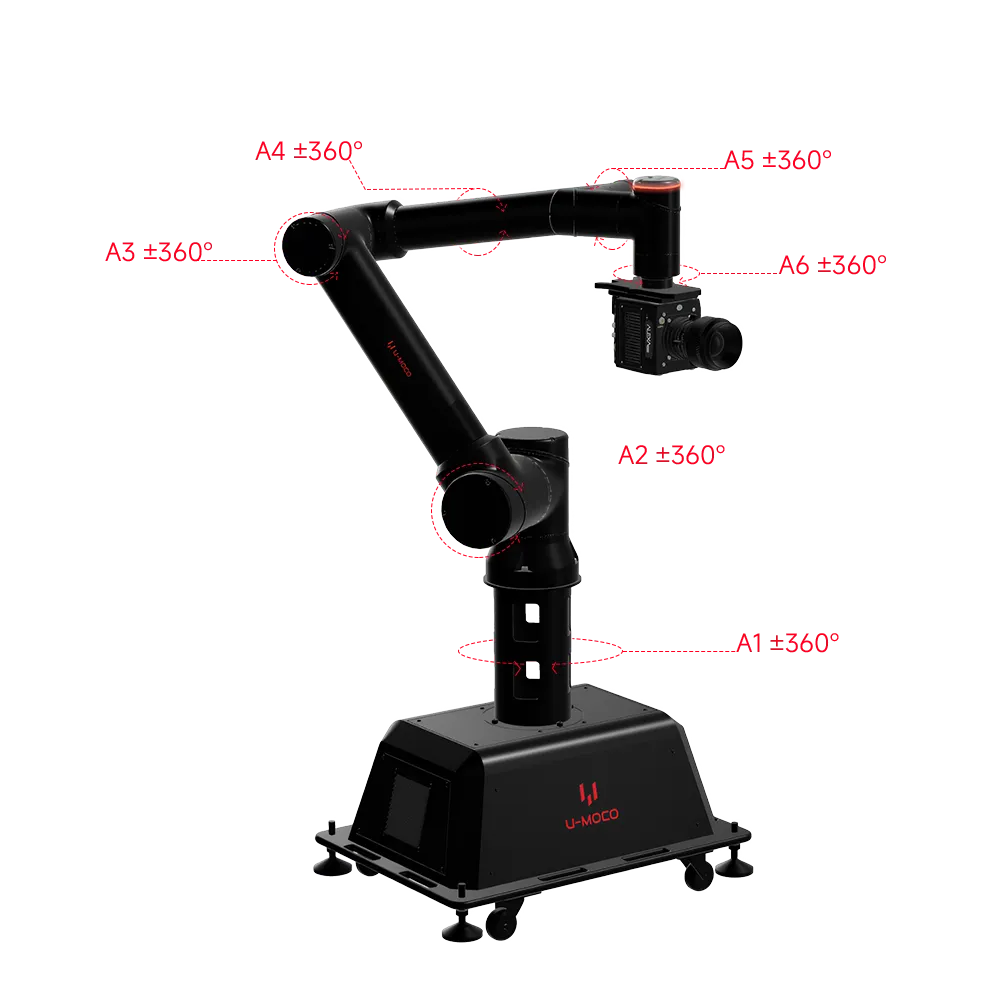

轴限位
A1±360°
A2±360°
A3±360°
A4±360°
A5±360°
A6±360°
性能
力矩量程400 N·m
最大直线速度1.5 m/s
额定负载8 kg
臂体重量36 kg
整机重量（依配置）≈108 kg
重复定位精度±0.03 mm
电力与环境
输入电源220 V
输入电流10 A
臂体防水等级IP67
运行温度0–50 °C

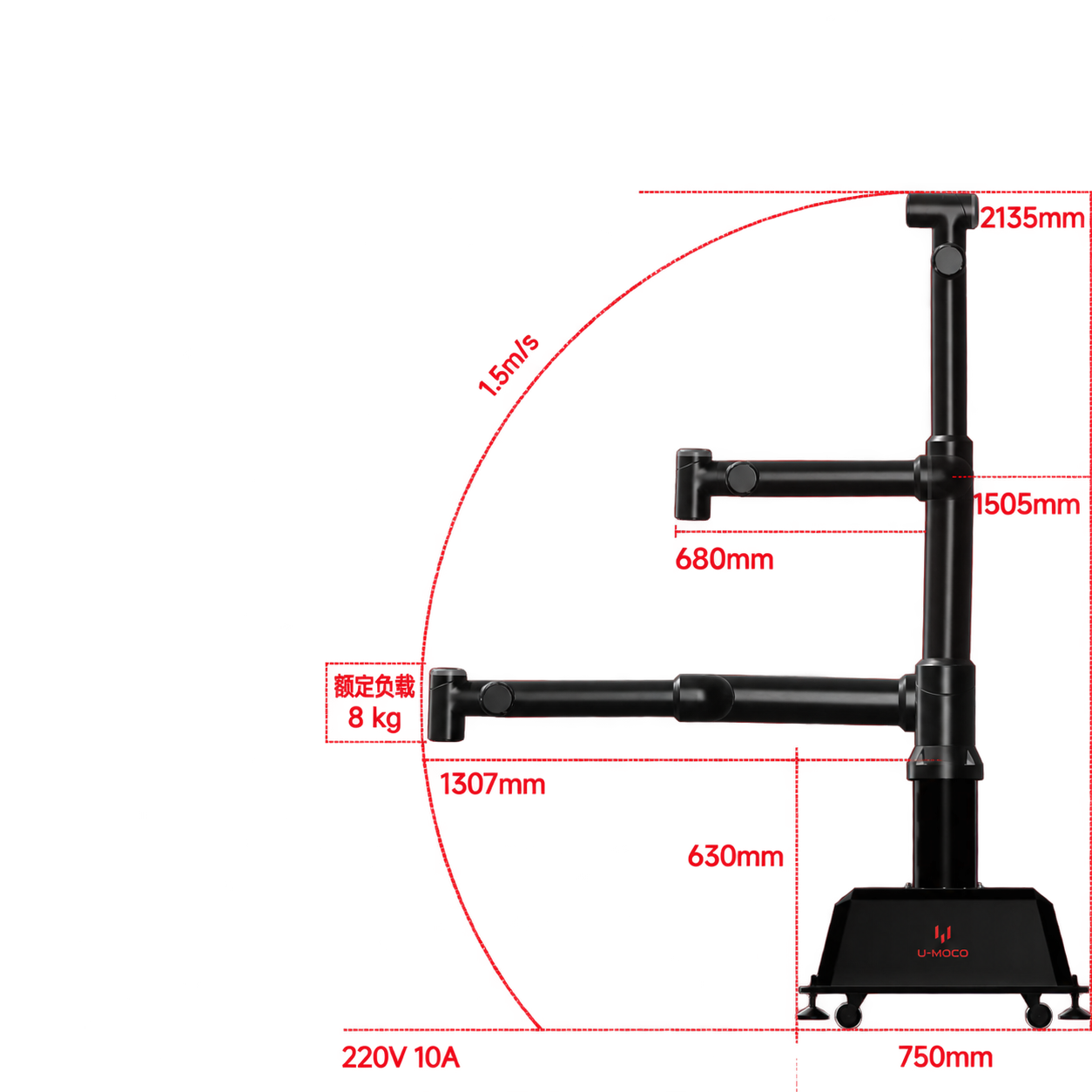

标尺示意图
高强度稳定支撑，自由移动，并可扩展适配标准影视轨道。
